CIRCUITLINE / PRODUCT CONCEPT
Prototype PCB Assembly
Make the first build more informative.
A prototype-assembly concept for evaluating fit, assembly and test before a larger release.
Enquire about this productExplore selection details ↓01
Bring your application and constraints. We will use them to define a configuration brief and identify the technical evidence required.
A CLOSER LOOK
Consider the details that shape your application.
Assembly intent
Mark orientation, variants and do-not-populate positions.
Feedback loop
Agree how build observations and test results feed the next revision.
SYSTEM PERSPECTIVE
Understand the product in the wider process.
Gerber or ODB++ files, an accurate BOM and placement data tell only part of the story. Test requirements, critical components, material specifications and revision control make the handover actionable.

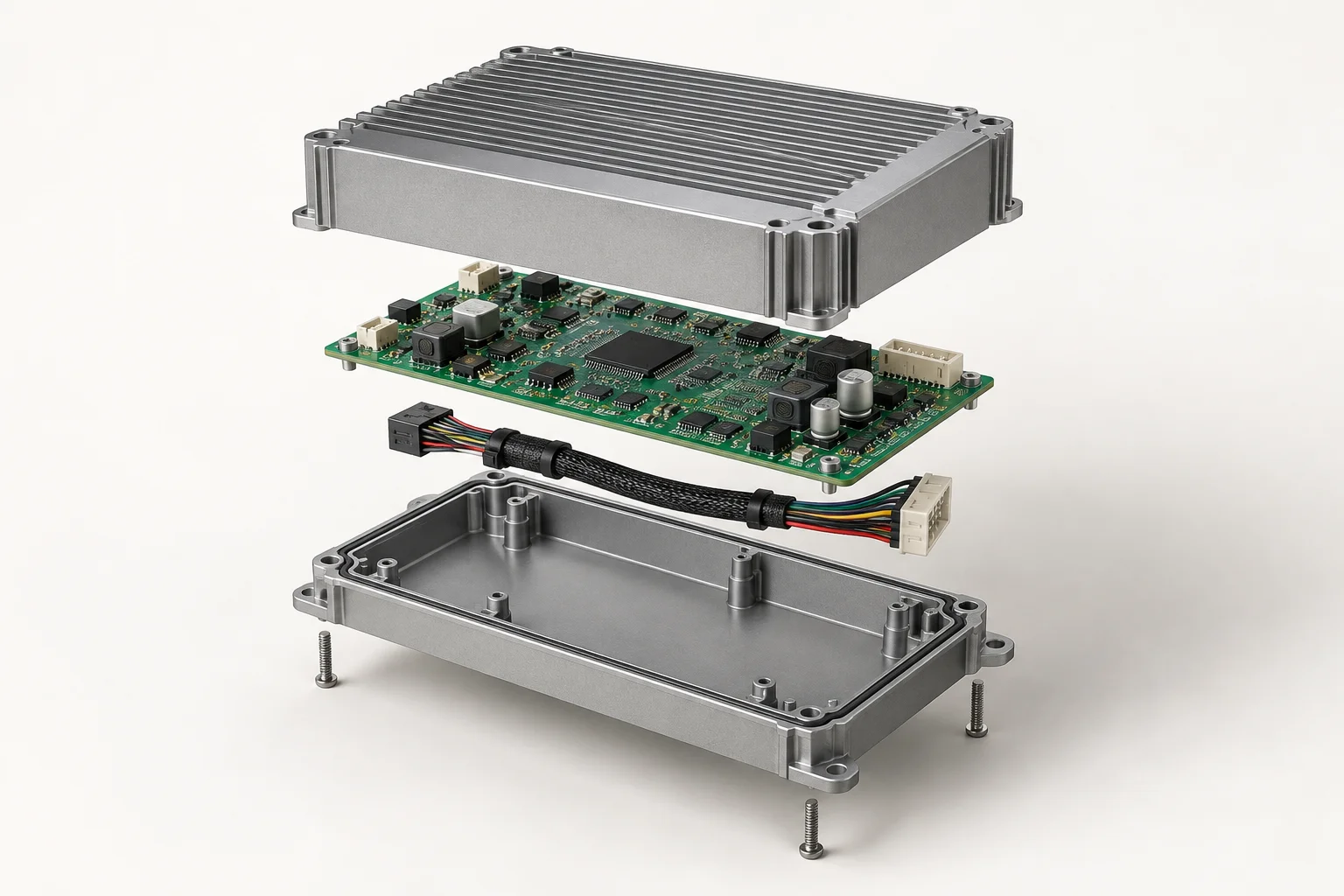

Concept anatomy · not an engineering drawing01Fabrication data+
Board files, stack-up, dimensions and drawing notes.
02Assembly package+
BOM, placement data, polarity and approved substitutions.
03Quality & test+
Inspection scope, programming, test fixtures and acceptance criteria.
SELECTION / BEFORE THE SPECIFICATION
The details that make a better brief.
These are project-planning criteria. Final dimensions, rated performance, certifications, price and delivery time must be confirmed in the model-specific proposal. The concepts shown here do not establish tested specifications.
Send your requirements- Fabrication data
- Board files, stack-up, dimensions and drawing notes.
- Assembly package
- BOM, placement data, polarity and approved substitutions.
- Quality & test
- Inspection scope, programming, test fixtures and acceptance criteria.
- Supply planning
- Batch size, component availability and revision control.
BEFORE YOU ENQUIRE
A few useful answers.
What should I send for an initial discussion?+
Board files, stack-up, dimensions and drawing notes. BOM, placement data, polarity and approved substitutions. Inspection scope, programming, test fixtures and acceptance criteria. Batch size, component availability and revision control.
Are the illustrations final production specifications?+
No. These are illustrative product concepts. Ask for model-specific drawings, rated data and applicable documentation before making a purchasing decision.
How do we confirm the configuration?+
Define the application and acceptance criteria first. Review the proposed scope, exclusions, sample or engineering evaluation and delivery responsibilities in the quotation.
